Engineered Sheet Products™ (ESP™), a division of RTP Company, is your one-stop-shop for custom extruded sheet. As a result of our relationship with RTP Company, our services and capabilities range beyond what you’d expect from a typical sheet extrusion manufacturer because there is no need to compromise with an off-the-shelf material and/or sheet size.
Come to us with your material requirements and we’ll work with RTP Company’s Engineering Department to select an extrusion grade compound optimized to make your program a success. We work in many different engineered resin systems and offer a wide range of thermoplastic technologies, including:
Once a compound has been selected, we’ll further review your sheet sizing requirements. Our capabilities range from thick-gauged sheets for thermoforming and thin-gauged sheets for die-cutting, which makes us well equipped to help you optimize for high yield!

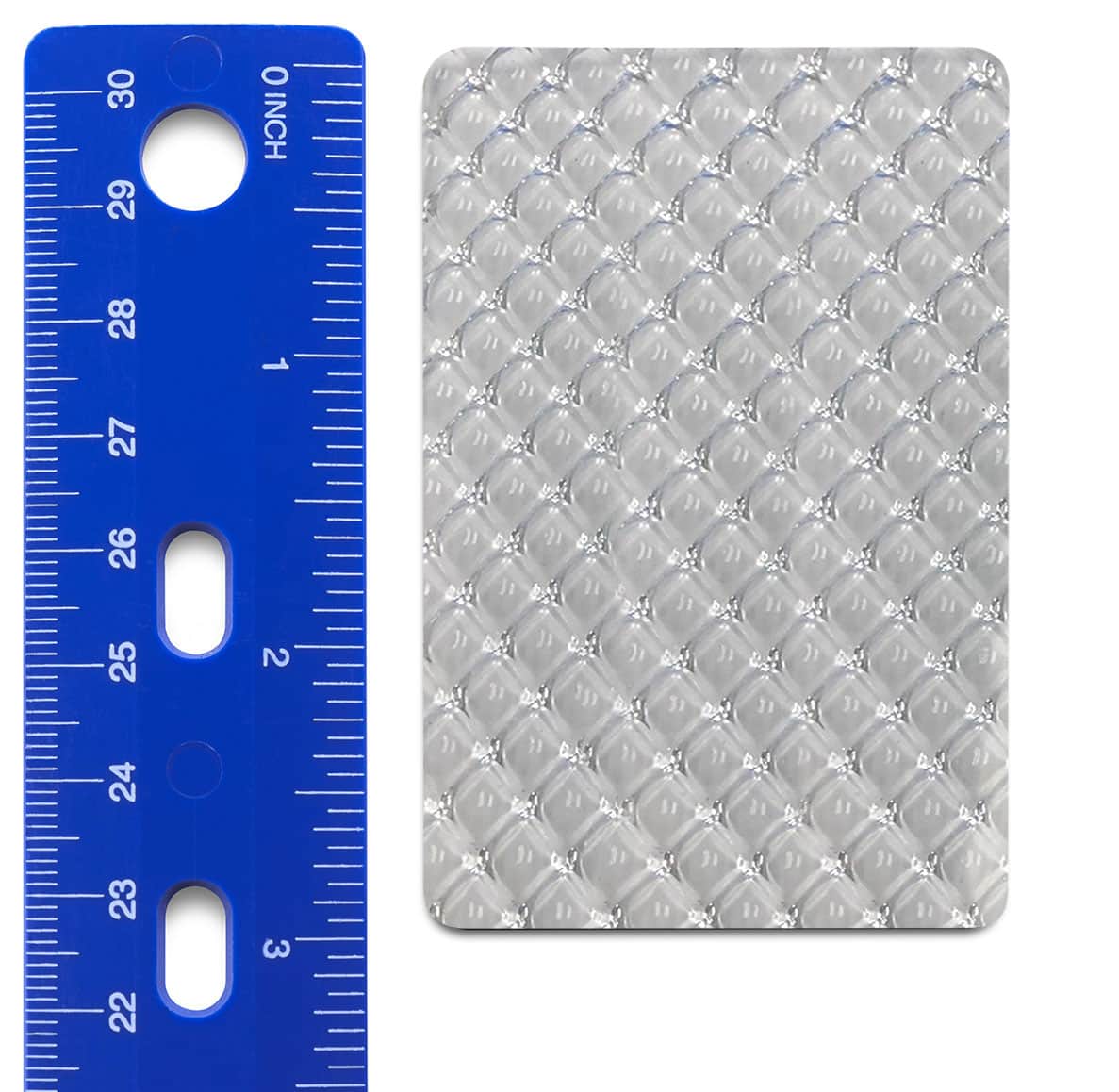

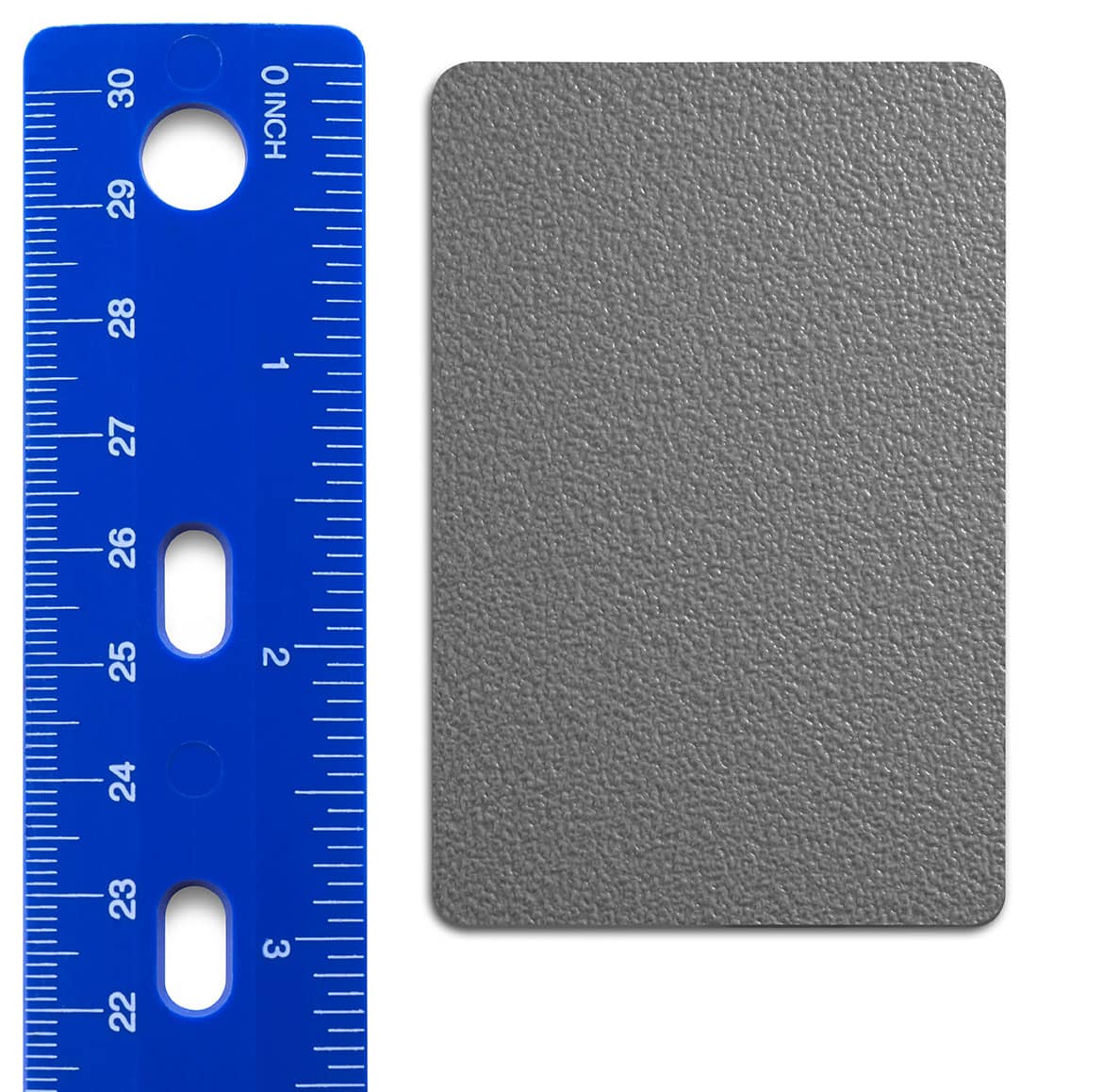

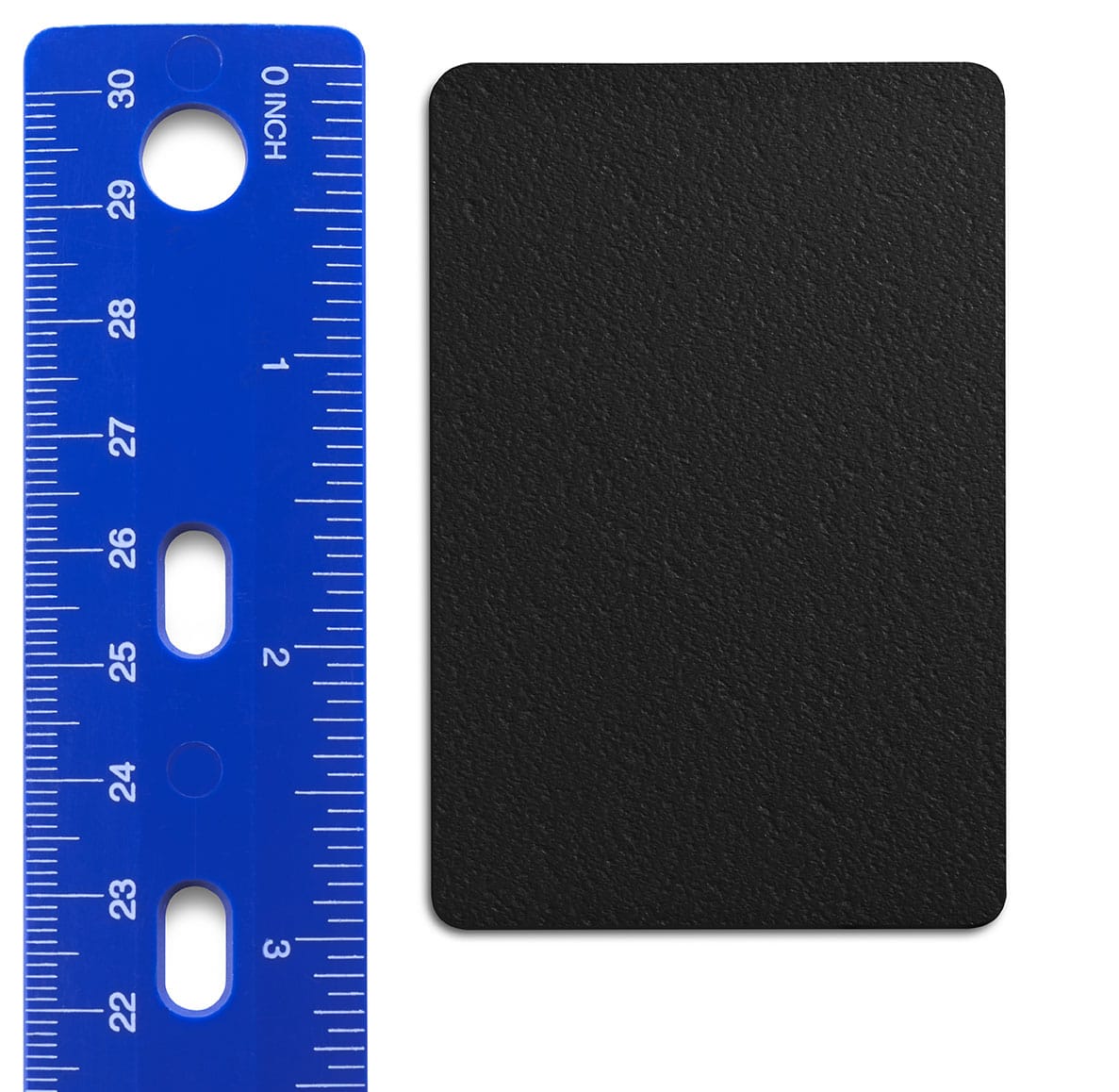

Available textures include: Smooth, Matte, Heavy Grain, and Diamond
Production Capabilities | |||||
Thickness | Width | Length | Available Textures | Minimum Order Quantity | |
Medium Line | .020” to .080” | 10” to 32” | Any shippable length | Smooth, Matte | 660 LBS |
Large Line | .030” to .250” | 28” to 58” | Any shippable length | Smooth, Matte, Heavy Grain | 1,320 LBS |
Transparent Line | 0.030” to 0.250” | 24” to 70” | Any shippable length | Smooth, Diamond | 1,320 LBS |
- If you require rolls, contact us to discuss your weight capacity, core size (3” or 6”), and to review your requirements in terms of splicing and imperfections.
- One-sided masking is available upon request for our Medium and Large Line. Double-sided masking is available for our Transparent Line.
- Lamination is available upon request (cap stock can be produced by RTP Company’s film division, Wiman Corporation).
Proof-of-Concept Capabilities | |||||
Thickness | Width | Length | Available Textures | Minimum Order Quantity | |
Lab Line | .020” to .080” | 8” to 10” | Any shippable length | Smooth, Matte | 50 LBS |
Transparent Line | 0.030” 0.060” 0.090” 0.125” 0.156” 0.187” 0.250” |
10” | 10” | Smooth | N/A |
Injection Molding Capabilities | 0.040” 0.060” 0.080” 0.090” 0.125” 0.160” 0.250” |
6” | Variable (ranges from 5” to 12” depending on thickness) | Smooth, Matte | 20 LBS |
- Injection molded plaques can also be provided for material evaluation.
- Rolls can be offered with a 3” core.
- Lamination is available upon request (cap stock can be produced by RTP Company’s film division, Wiman Corporation).
Note: for rolls, substitute the length for 36 inches (one linear yard) to determine the pounds per linear yard
